Description

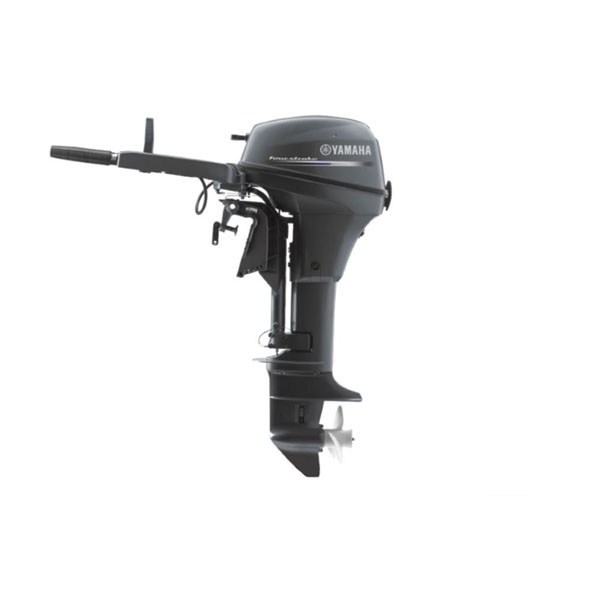

2019 Yamaha Marine 9.9 4-Stroke F9.9SMHB Outboard Motor

This engine has many advantages that make it perfect for annexes, small excursions or family fishing expeditions. Choose the engine that offers maximum fun on the water, whether you are an amateur on a casual outing or experienced and love the thrill of water sports. The new two-cylinder F9.9 is full of sought after benefits including fuel economy, smoothness and lightness. In addition, there have been a host of improvements with the ergonomics and a new look. That’s not all: its increased displacement of 7.5% multiplies the torque and thrust.

To better preserve the marine environment, Yamaha uses novel technologies for clean combustion that do not alter the qualities, power or performance of their motors.

WITH A TWIST

The driveshaft on the new F9.9 has a special centre section that is narrower than the ends. It is designed to temporarily “twist” should the prop coming into hard contact with an underwater object, protecting the powerhead, propshaft and other vital engine components.

CONTROL

The shortened tiller handle is now easier to use than ever before. Its new shift level shape provides better grip for precise shifting.

FUEL SIPPER

Thanks to advanced Yamaha four-stroke engine technology the F9.9 boasts outstanding fuel economy – substantially better than 2-stroke 9.9-hp models.

FRONT & CENTRE

Convenient front-mounted controls facilitate smooth shifting, easy, shallow water drive and single action steering friction adjustment.

ANTI-CORROSION PROTECTION

Yamaha’s unique YDC-30 aluminium alloy protects the engine’s exterior parts, while a zinc coating, high-quality stainless steel and 5-stage exterior coating offers long-lasting protection inside and out.



2019 Yamaha Marine 9.9 4-Stroke F9.9SMHB Outboard Motor

Features may include:

• Ergonomic shift lever on the tiller handle

• Easy-fold handle design for storage & portability

• Extra resting pad for convenient vertical storage

• Compact and efficient engine design

• New F9.9 model has more power and impressive torque

• Lighting coil fitted as standard

• Single-action steering friction (F9.9 Tiller)

• Fresh water flushing system

• Shallow Water Drive for cruising close inshore

• Over-rev limiter

• Start-in-gear’ protection system
• Audible warning of low oil pressure



2019 Yamaha Marine 9.9 4-Stroke F9.9SMHB Outboard Motor

• Year 2019
• Manufacturer Yamaha Marine
• Model Name 9.9 4-Stroke
• Trim Name F9.9SMHB
• Generic Type (Primary) General
• Engine Type Four-stroke 2-cylinder
• Displacement 12.9 ci (212 cc)
• Bore 2.2 in (56 mm)
• Stroke 1.69 in (43 mm)
• Compression Ratio 9.46:1
• Engine Torque (rpm) 5000-6000
• Induction SOHC
• Exhaust Through Prop / Water Cooled Lab
• Cooling Water/Thermostatic Control
• Lubrication Wet sump
• Ignition CDI Micro-Computer
• Oil Type Recommended: Yamalube 4-M FC-W 10W-30 ou 20W-40
• Electric
• Alternator Output, Maximum12V / 6 Amps
• Starter Manual or electric
• Drivetrain
• Gear Shifter Tiller Mount F/N/R
• Gear Ratio (Primary) 2.08 (13/27)
• Fuel System
• Fuel Injection Delivery: Carburetor (1)
• Fuel Type Recommended: Regular Unleaded (Minimum Pump Octane 87)
• Dimensions
• Length Shaft: 15”
• Capacities
• Oil capacity. 85 qt (0.8 L)
• Weights
• Dry Weight 87 lbs. (39 kg)
• Features Degree Of Trim/Tilt: 4 positions / 70°

2019 Yamaha Marine 9.9 4-Stroke F9.9SMHB Outboard Motor

In The Box
Fuel Tank
Quick Connect Fuel Line
Standart Aluminum Propeller
Yamalube Oil
Yamaha Owner’s Manual & Tool Kits
Yamaha 5-Year Warranty
